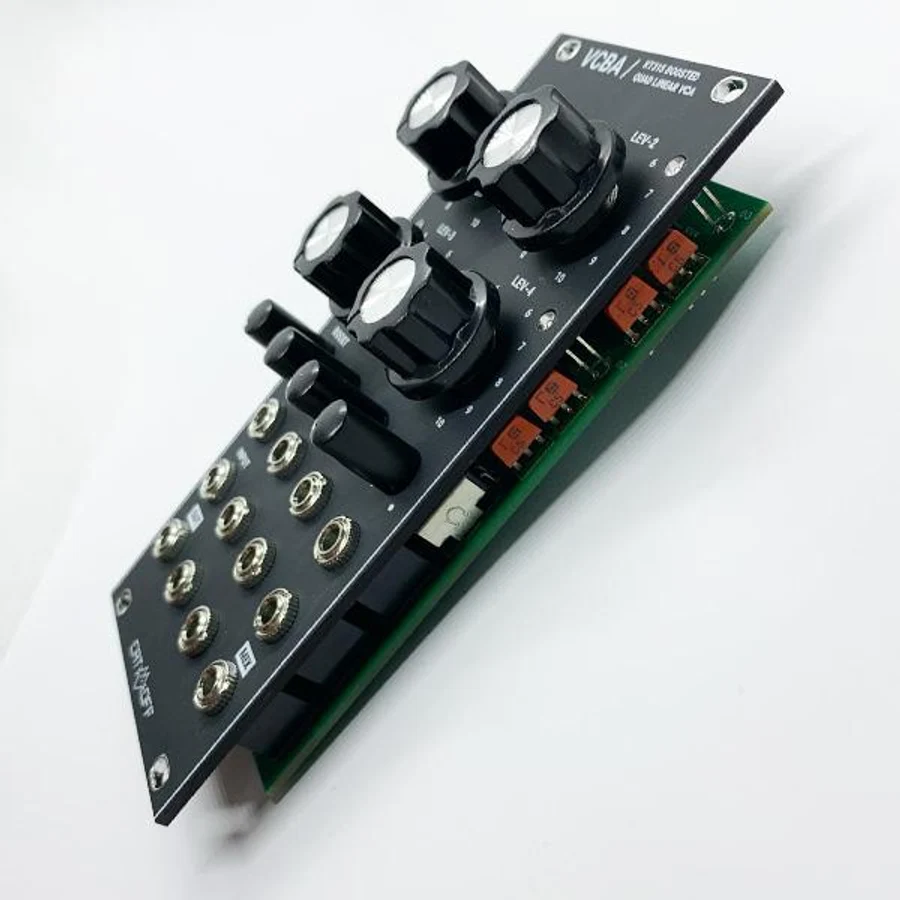

VCBA

quad linear boosted vca

CATOFF

Four VCA in one module

*

AC-coupled, specially created for your analog sound

*

BOOST per channel is build on two cascades of the authentic Soviet Union KT315 transistor which adds interesting nonlinear distortions to the main sound

*

MIX is a common output combined with output 4, which summarizes the signals from all inputs

*

Patchcord connection to output 1,2 or 3 exclude the channel signal from the overall mix

*

Can be used as a simple mixer

*

TECHNICAL SPECIFICATIONS

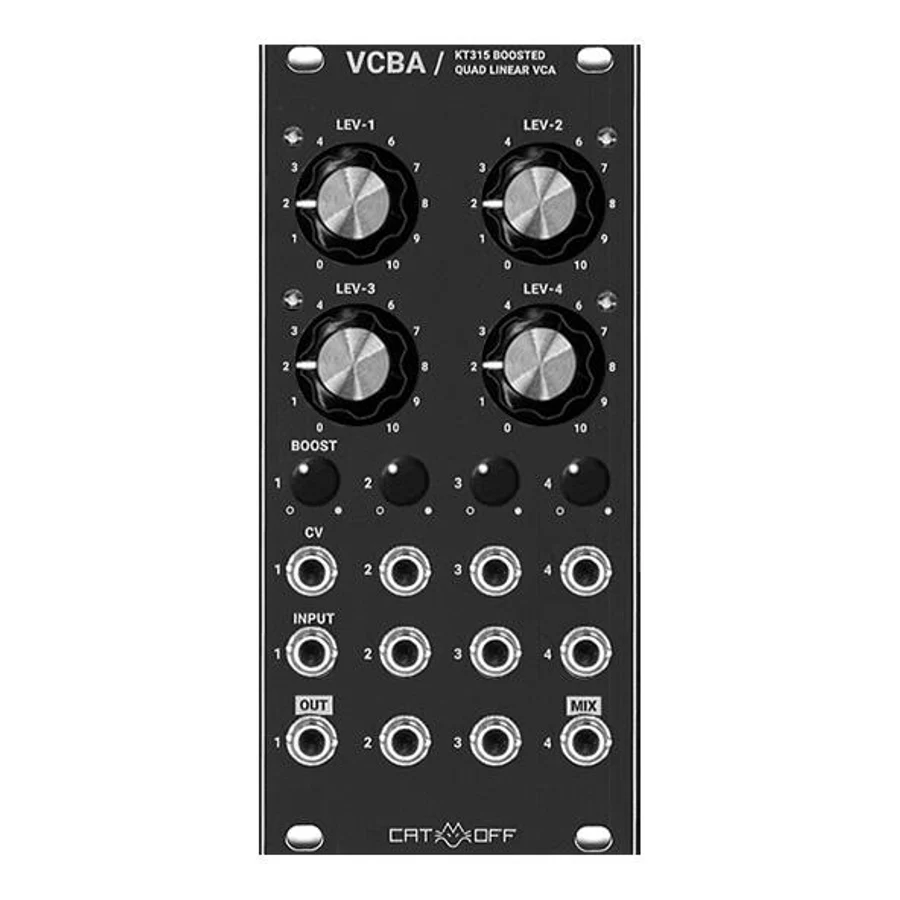

Controls and indicators: 20mm bakelite knobs for LEVEL / CV attenuator per channel BOOST parameter mini-knob per channel Signal indication LED per channel Inputs: 4 x 3.5mm TS mono jack Input Impedance: 280 kΩ unbalanced Maximum Input Amplitude: 10V (20dBu) AC Coupled Outputs: 4 x 3.5mm TS mono jack Output Impedance: 1.1 kΩ unbalanced Maximum Output Gain: 1 (0dB) w/o boost CV input range: 0 / +5v Power Usage: 60mA# +12v / 50mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel

  • Stock

    YES

Four VCA in one module

*

BOOST per channel is build on two cascades of the authentic Soviet Union KT315 transistor which adds interesting nonlinear distortions to the main sound

*

Patchcord connection to output 1,2 or 3 exclude the channel signal from the overall mix

*

AC-coupled, specially created for your analog sound

*

MIX is a common output combined with output 4, which summarizes the signals from all inputs

*

Can be used as a simple mixer

*
