11 000 ₽

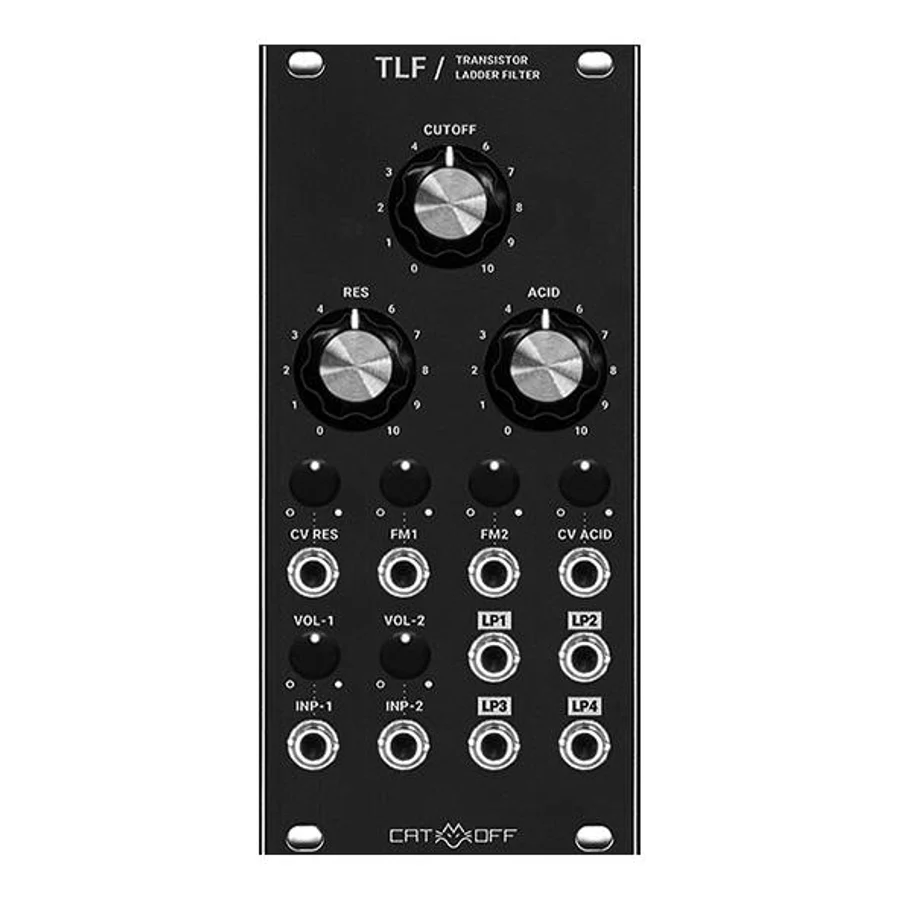

TLF

transistor ladder filter

CATOFF

Transistor ladder filter classical circuit

*

Multi-pole LowPass with separate outputs

*

Two frequency modulation FM inputs

*

Two audio inputs with adjustable levels

*

The ACID hfeameter is a second resonance, which has a different character and gives the sound a specific tint

*

Both resonances are controlled via CV independently

*

TECHNICAL SPECIFICATIONS

Gain factor when the filter is fully open: 1 (0dB) CV sensitivity (for all CV inputs): 5v per scale FM CV inputs: exponential / the others CV are all linear Maximum audio-input level: -/+5V (14dBu) AC coupling Filter outputs: LP1: 1-pole 6dB/oct LP2: 2-pole 12dB/oct LP3: 3-pole 18dB/oct LP4: 4-pole 24dB/oct Power Usage: 60mA# +12v / 50mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel

  • Stock

    YES

Transistor ladder filter classical circuit

*

Two frequency modulation FM inputs

*

The ACID hfeameter is a second resonance, which has a different character and gives the sound a specific tint

*

Multi-pole LowPass with separate outputs

*

Two audio inputs with adjustable levels

*

Both resonances are controlled via CV independently

*
