10 000 ₽
PRC

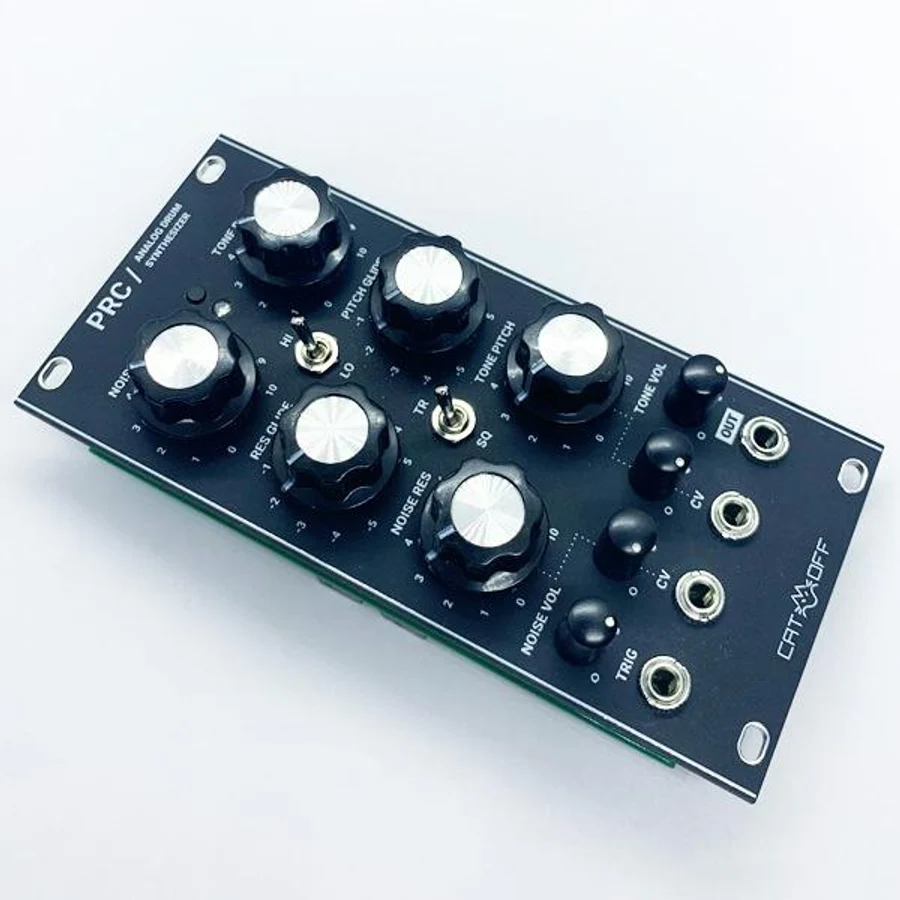

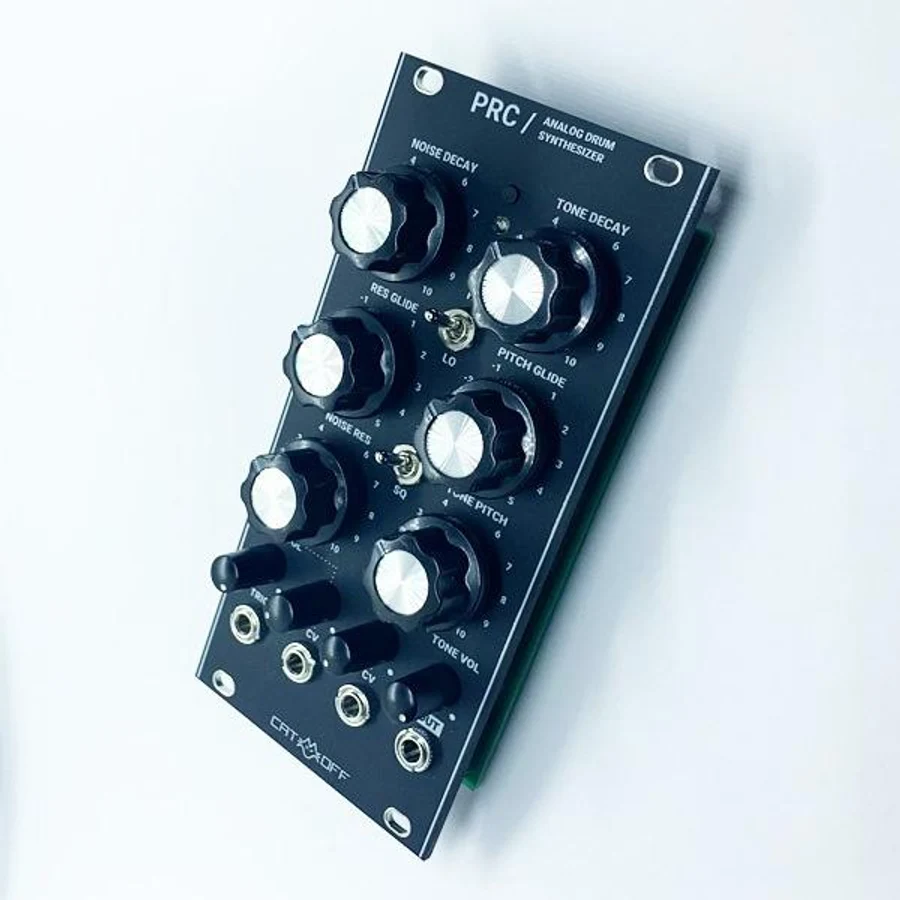

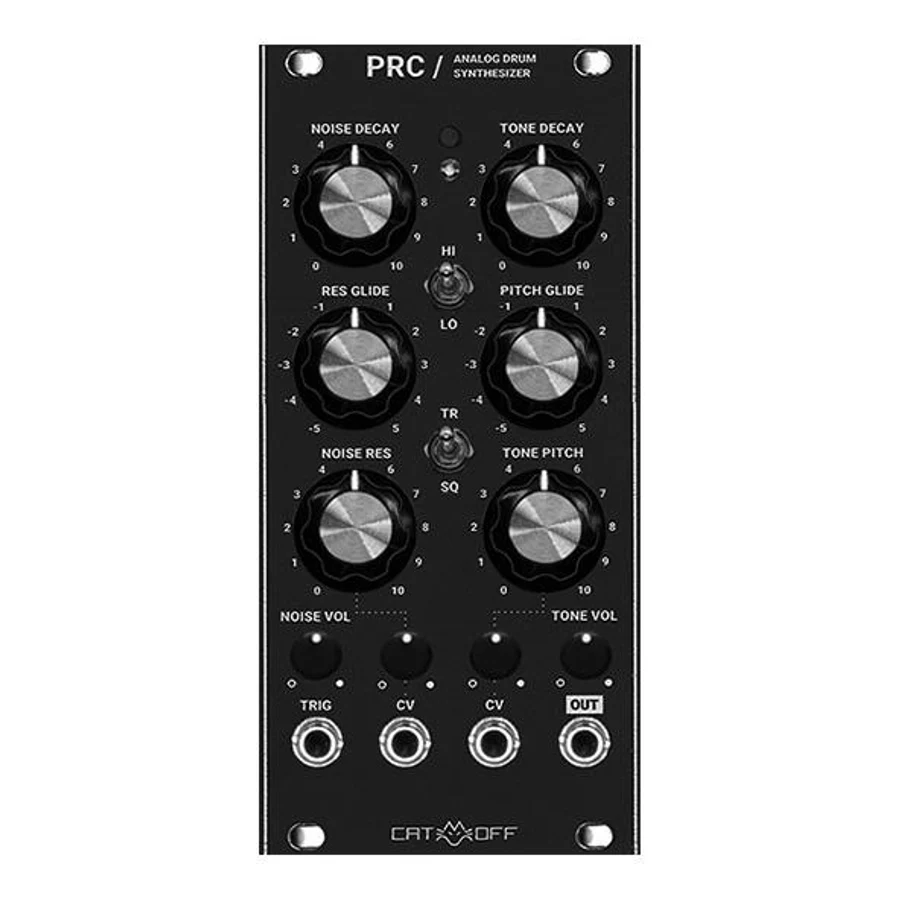

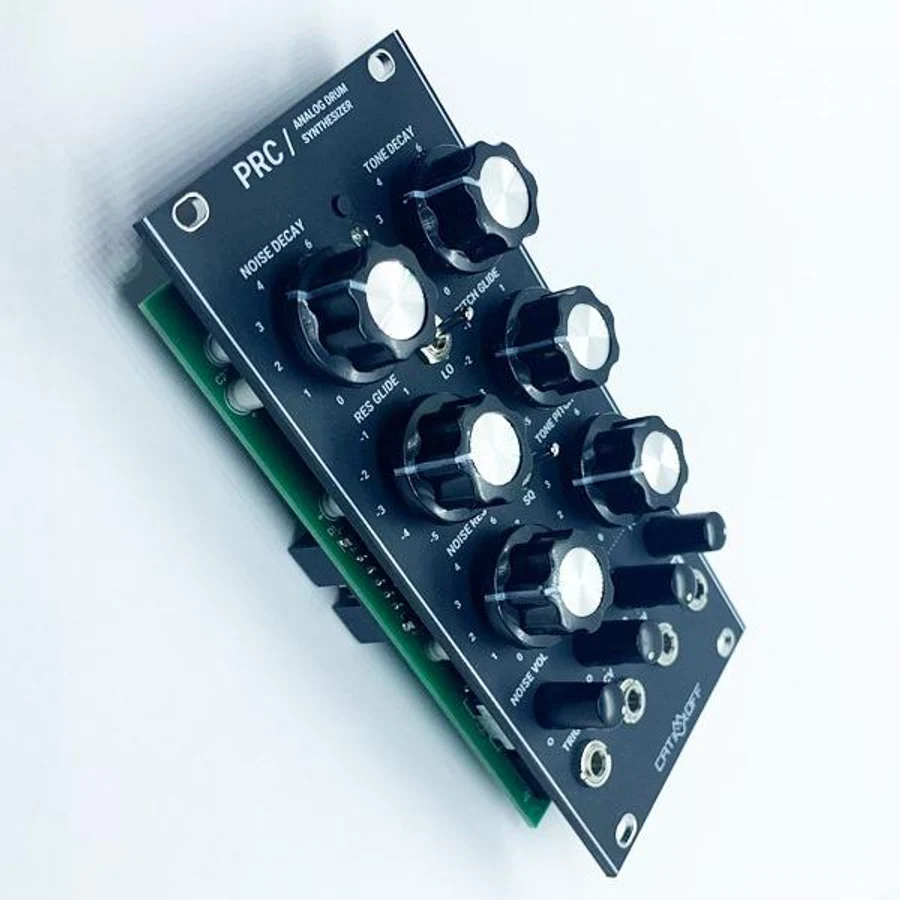

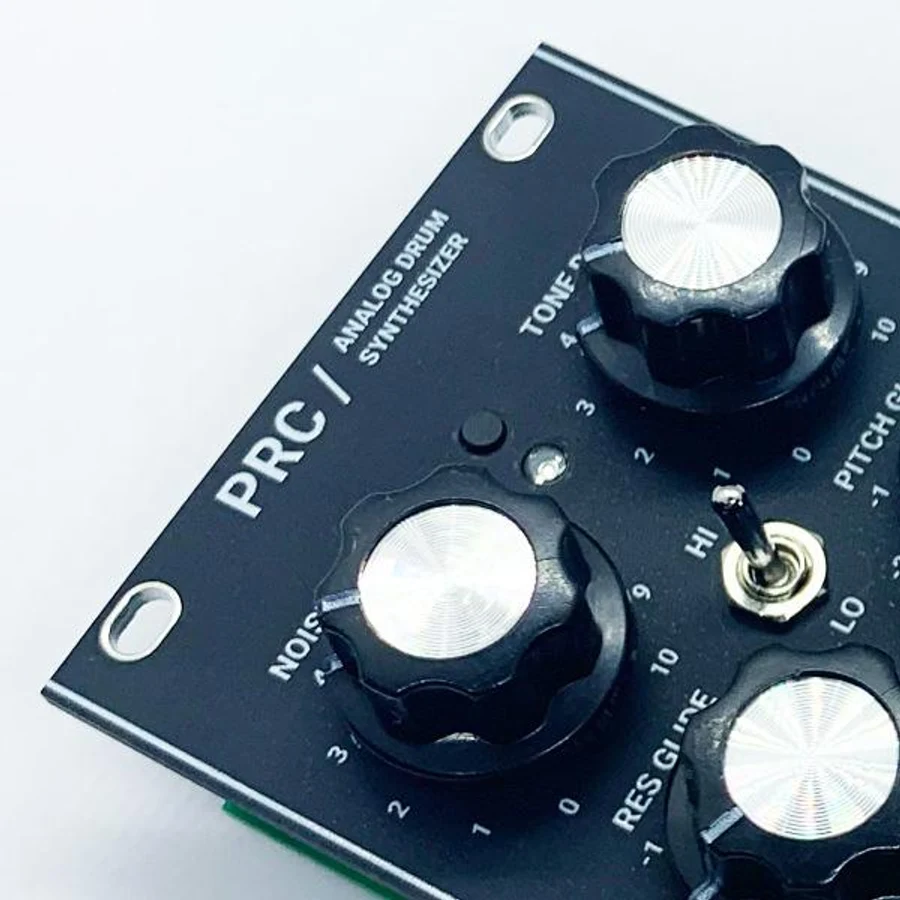

analog drum synthesizer
CATOFF
One analog percussion voice
*
Two sound channels NOISE И TONE
*
Six adjustable synthesis parameters, two of which are controlled by CV
*
Manual trig button and trig indication
*
TECHNICAL SPECIFICATIONS

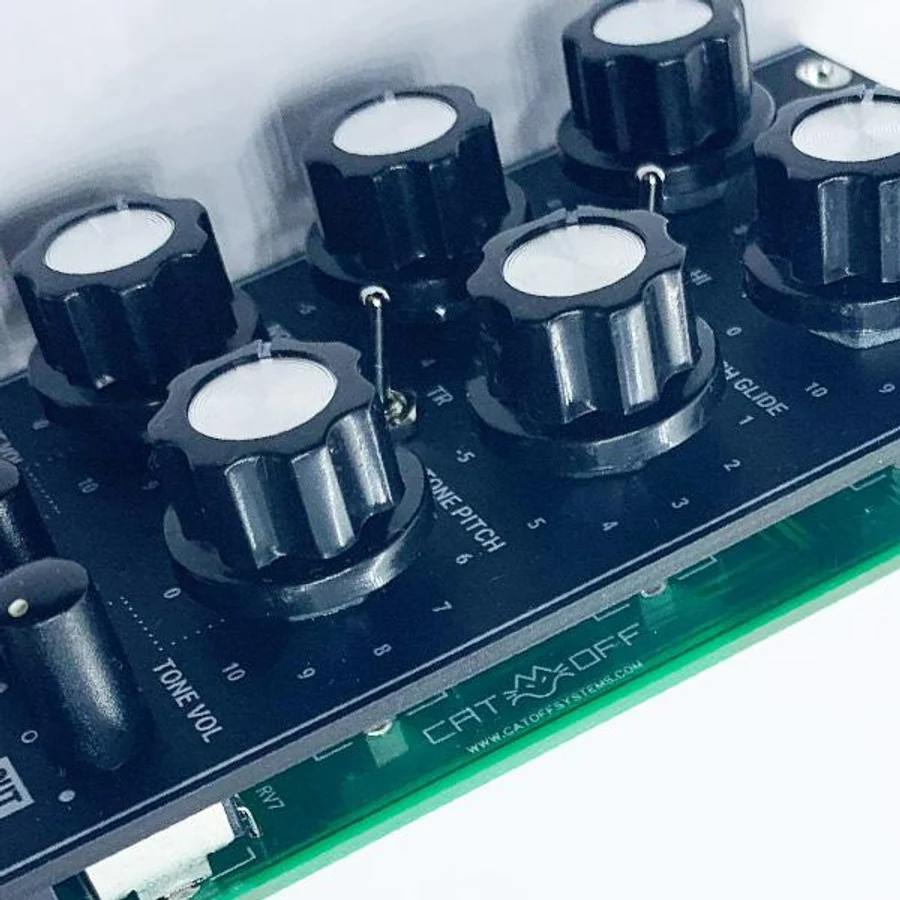

Tone Frequency Range: 25Hz - 380Hz (switch position Lo) / 800Hz - 9,5KHz (switch position Hi) Max Decay Time: 4 sec (Noise), 1.5 sec (Tone) Output at eurorack levels -/+10V (20Vpp) CV inputs responds -10 to +10v CONTROLS AND INDICATORS: Manual trig button Trig LED NOISE Channel Controls: Noise Decay, Resonance Glide, Noise Resonance, Noise Volume TONE Channel Controls: Tone Decay, Pitch Glide, Tone Pitch, Tone Volume Toggle switches: LO / HI (Tone Frequency Range), Wave Form (TR - triangle, SQ - square). 3,5mm Jack Sockets: Trig, Out, CV for Noise Resonanse with attenuator and CV for Tone Pitch with attenuator Power Usage: 40mA# +12v / 40mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel
- Stock
YES
One analog percussion voice
*
Six adjustable synthesis parameters, two of which are controlled by CV
*
Two sound channels NOISE И TONE
*
Manual trig button and trig indication
*
