LFG

Name: LFG
Brand: CATOFF
SKU: 141a162
Price: 13000 RUB
Availability: InStock

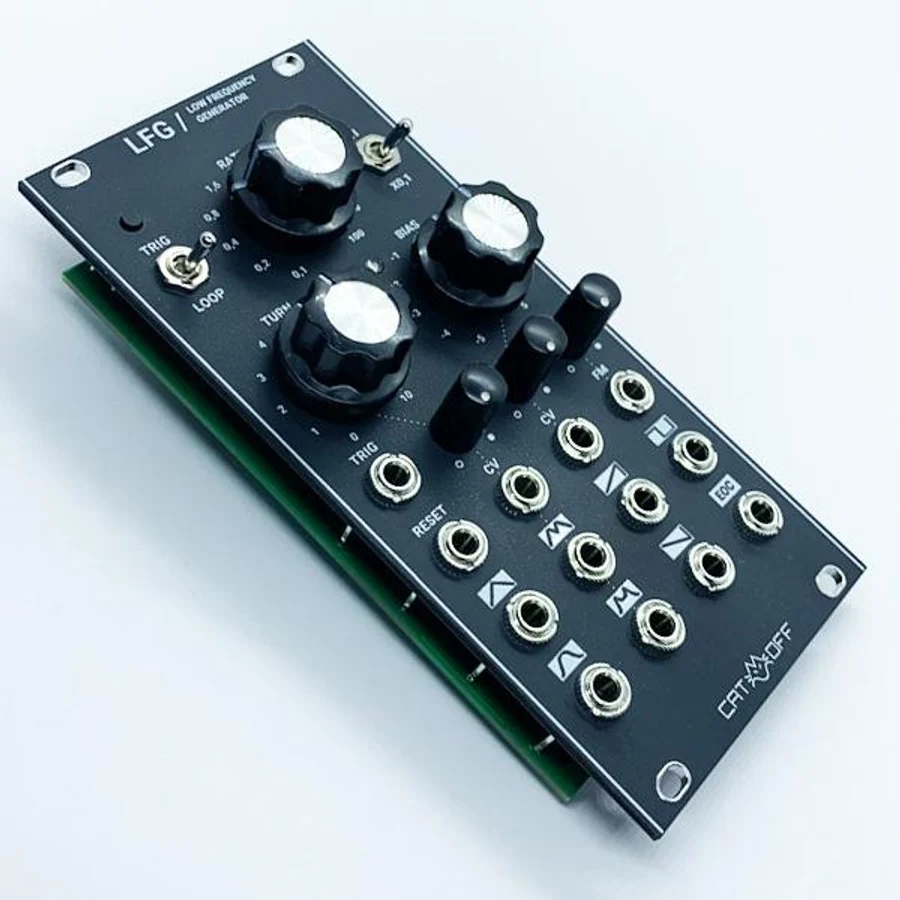

low frequency generator

CATOFF

Advanced LFO with advanced features

*

It can work as an envelope generator in cyclic (LOOP) mode or on a trigger, as well as be started manually by pressing a button

*

Five standard LFO-waves plus two modified ones, which are controlled by the TURN parameter

*

Frequency range switch from normal to slow motion by 10 times

*

BIAS control for offset from zero with polarity indication

*

All parameters, including frequency modulation, are controlled by CV

*

TECHNICAL SPECIFICATIONS

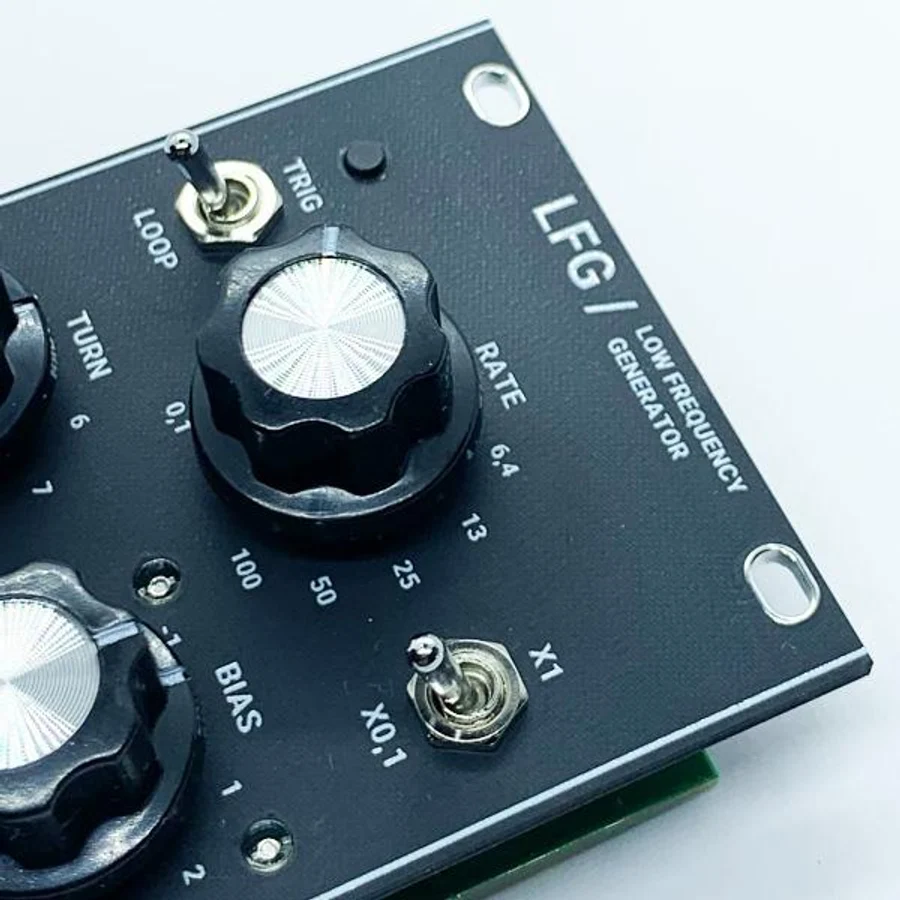

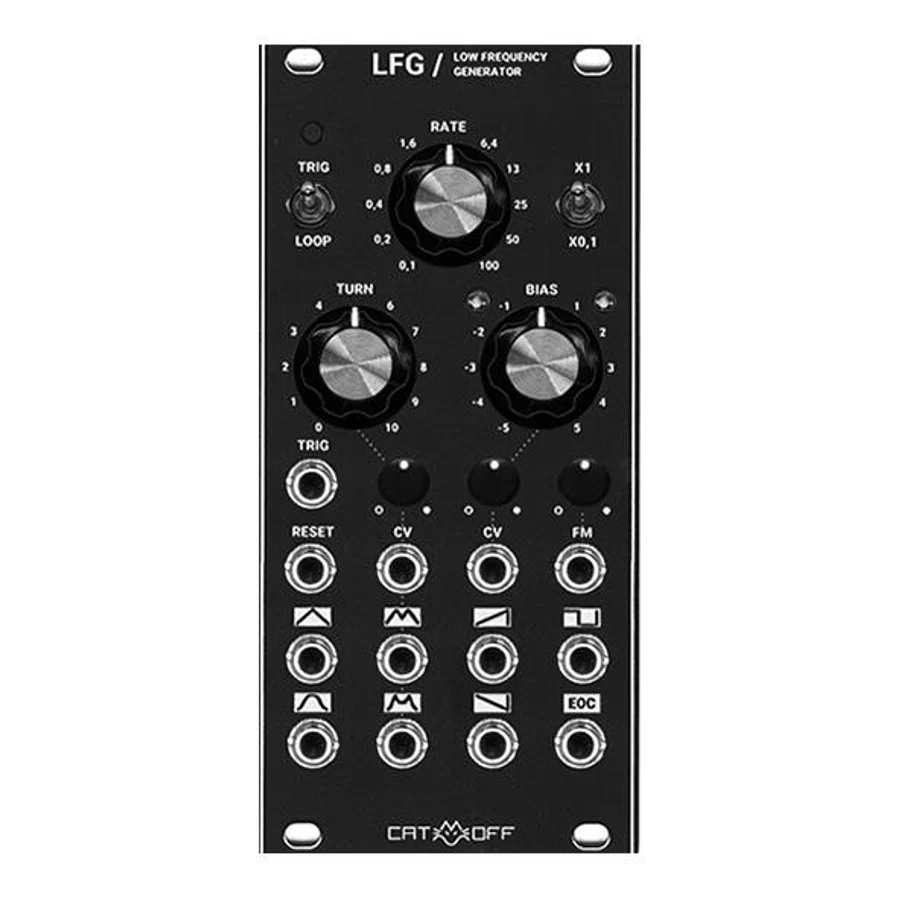

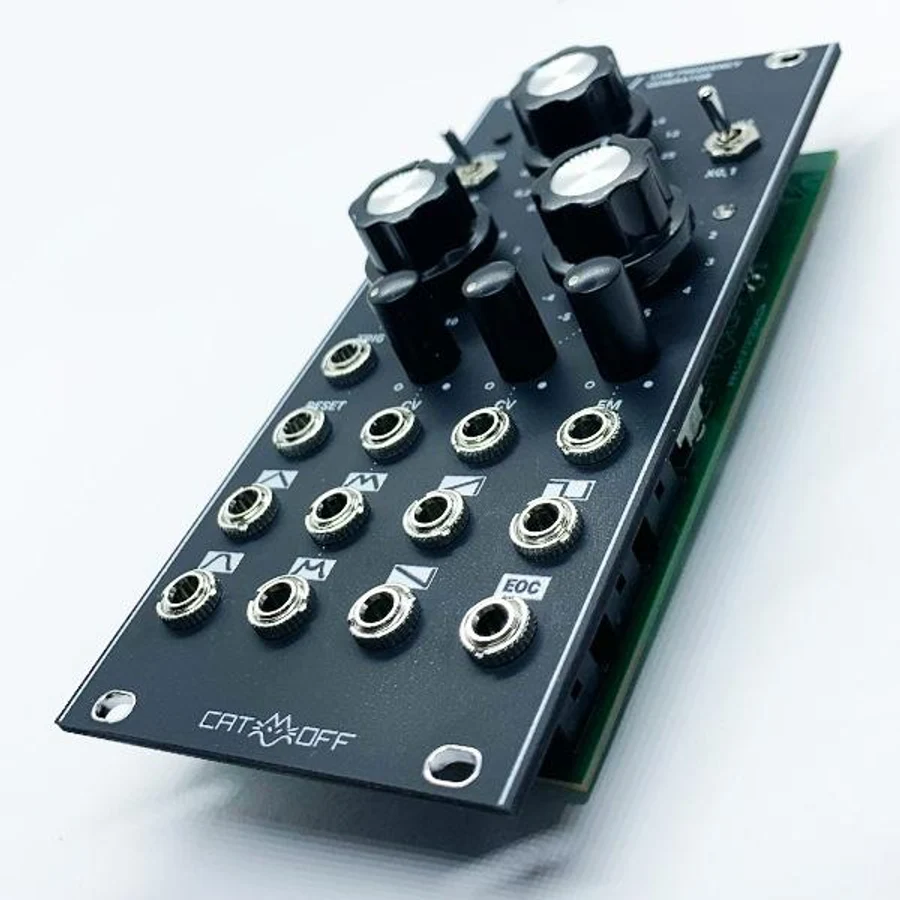

Frequency range (+/- 10%): 0,1Hz-100Hz (X1 range mode) / 0,01Hz-10Hz (X0,1 range mode) Output signal amplitude depending upon the position of the BIAS control: BIAS= 0: -5v/+5v, BIAS=-5: -10v/0v, BIAS=+5: 0v/+10v CV inputs responds: -10v/+10v EOC (End Of Circle) signal level: +5v / 1ms Trig and Reset inputs threshold: 4v CONTROLS AND SOCKETS: RATE Pot - Waves Frequency BIAS Pot - Polarity offset from zero TURN Pot - Morphing of two modified waves Waves outputs 3,5mm jack sockets: triangle, sine, inverted sawtooth, sawtooth, square and 2 modified waves, EOC socket: End Of Circle short impulse Input 3,5mm jack sockets: Trig - resets the wave and holds the reset when the gate is on Reset - resets the wave and immediately resumes. Сan work as Sync input CV inputs with attenuators for TURN, BIAS and frequency (FM) modulations Toggle switches: Loop/Trig Modes and Range X1/X0,1 Manual Trig button Power Usage: 65mA# +12v / 52mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel

Stock
YES
