KORM

Name: KORM
Brand: CATOFF
SKU: 5154655
Price: 12000 RUB
Availability: InStock

eurorack power kit

CATOFF

Complete power solution for medium-sized eurorack system

*

Easy to integrate into any PRO or DIY case

*

Input power connector with threaded fix - disconnection protect

*

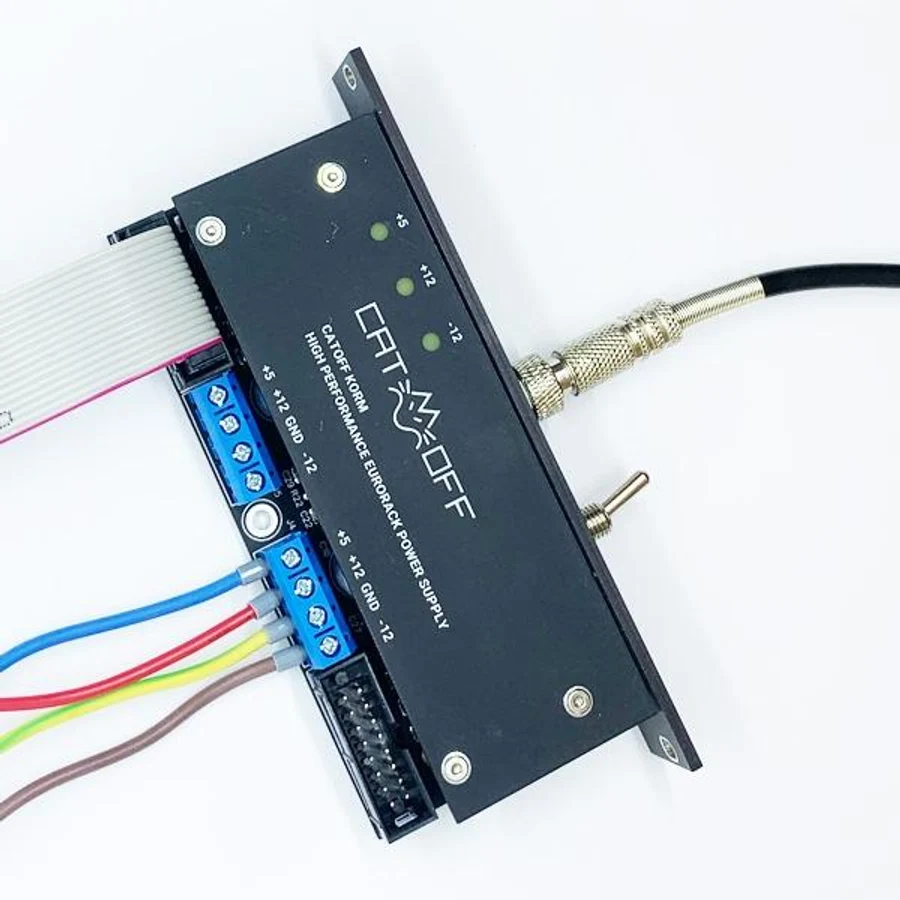

Double terminal blocks - you can also use other power distribution systems

*

Reversive design - install it anywhere according to your desire

*

TECHNICAL SPECIFICATIONS

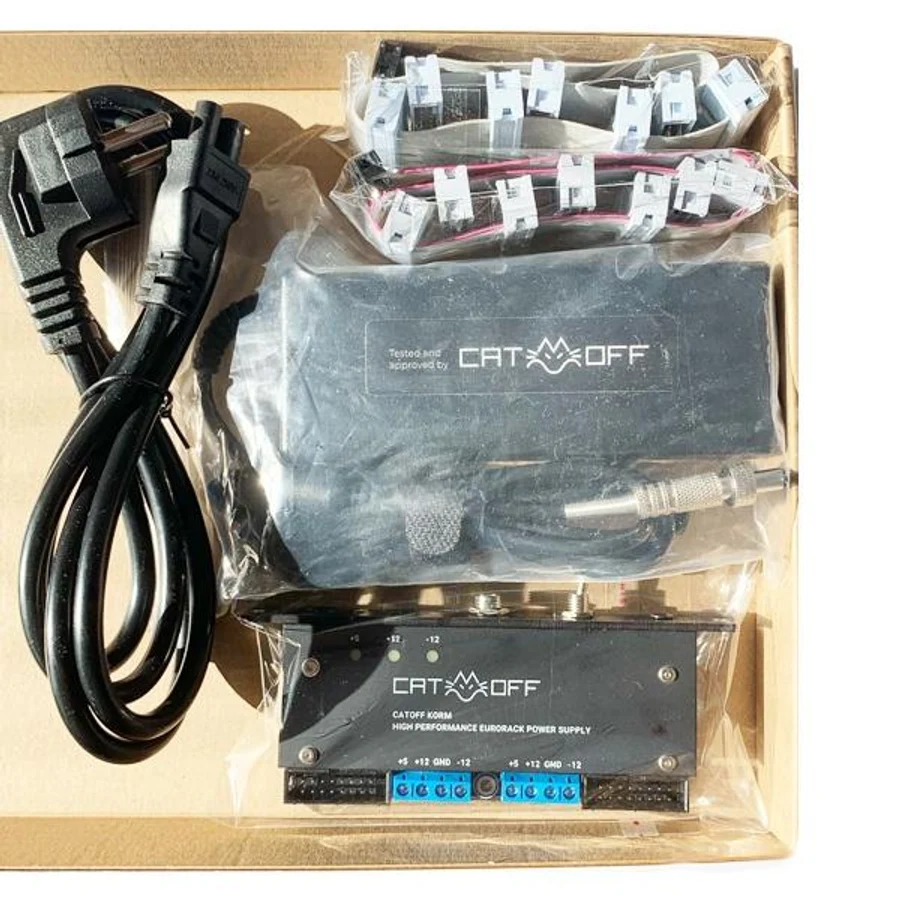

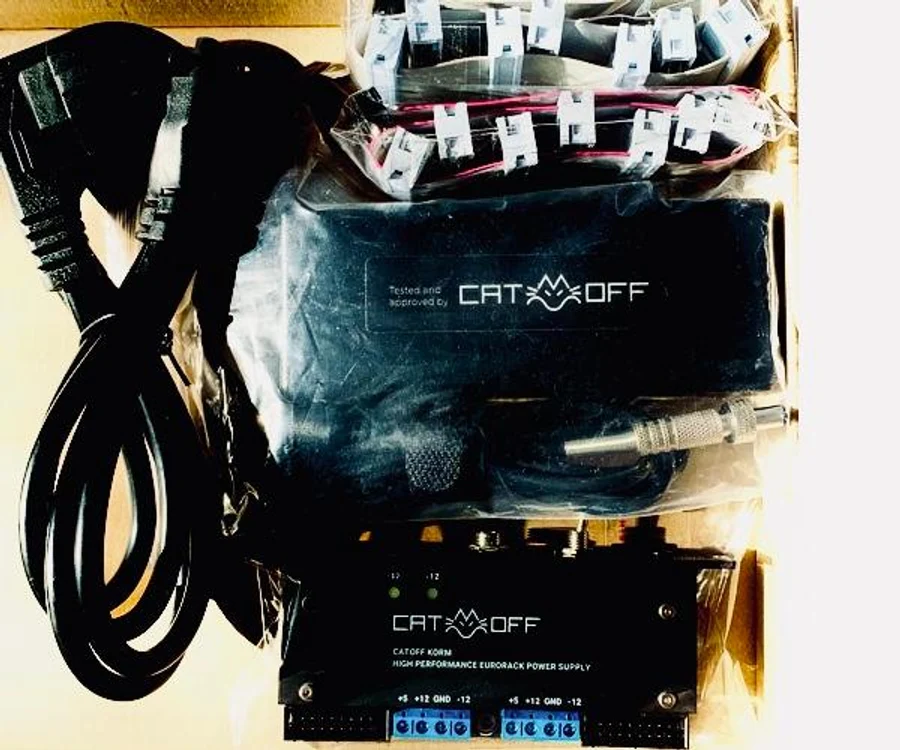

Input voltage range: 18-36v DC Maximum operating current of the channel +12v: 3A Maximum operating current of the channel -12v: 2A Maximum operating current of the channel +5v: 1,5A Ripple at a current of 1A per channel: no more than 10 mV Conversion frequency: 400kHz Built-in protection against: overload, short circuit, incorrect polarity Input power connector: 5.5 x 2.5mm / "+" in the center Width: 4HP Depth: 48mm max from the back side of the front panel Package content: * CATOFF KORM power unit * Power adapter АС 220v ~ DC 19v 90W * 2 pcs FlyingBUS (7 connectors on each) Compatible options / sold separately: Power distribution board CATOFF CBUS-14 Power distribution mini-board CATOFF XBUS-10

Stock
YES

Complete power solution for medium-sized eurorack system

*

Input power connector with threaded fix - disconnection protect

*

Reversive design - install it anywhere according to your desire

*

Easy to integrate into any PRO or DIY case

*

Double terminal blocks - you can also use other power distribution systems

*
