9 000 ₽

iKORM

Name: iKORM
Brand: CATOFF
SKU: 2e36aa
Price: 9000 RUB
Availability: InStock

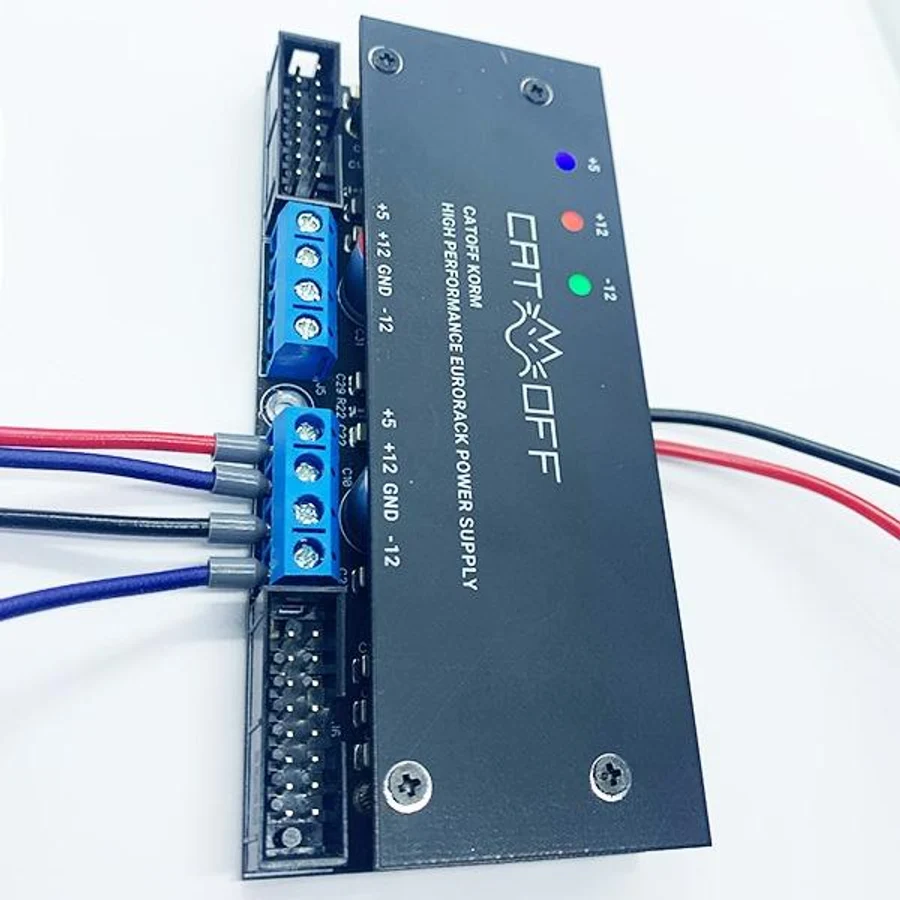

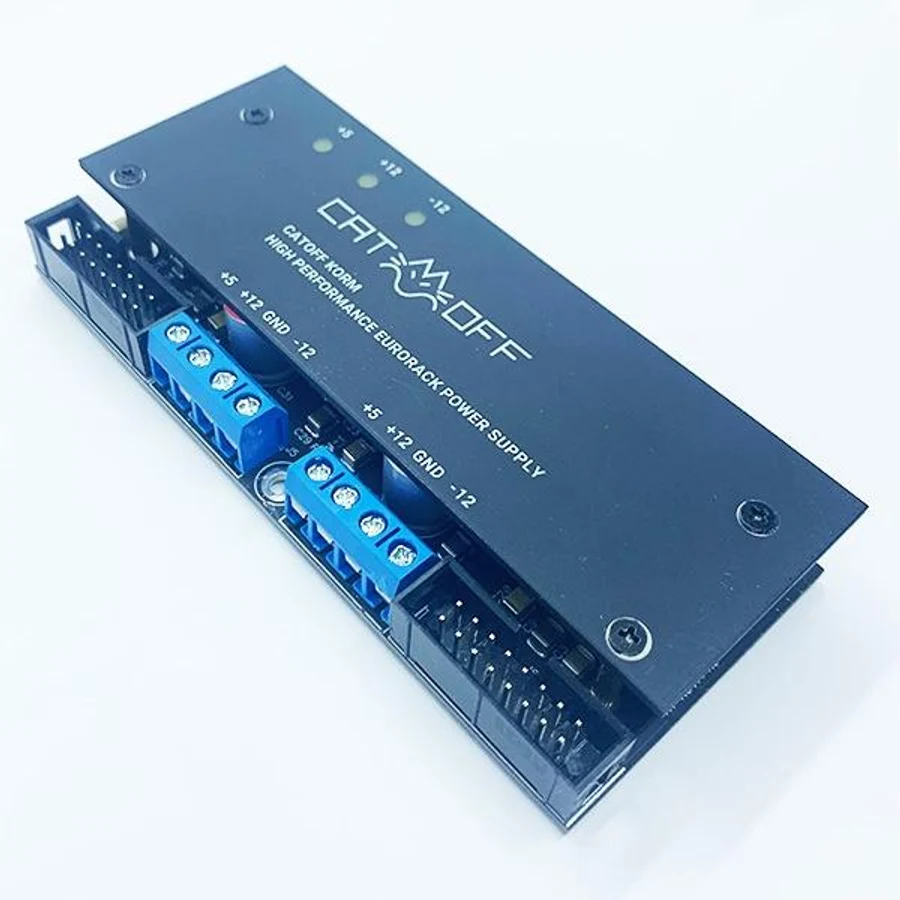

internal eurorack power converter

CATOFF

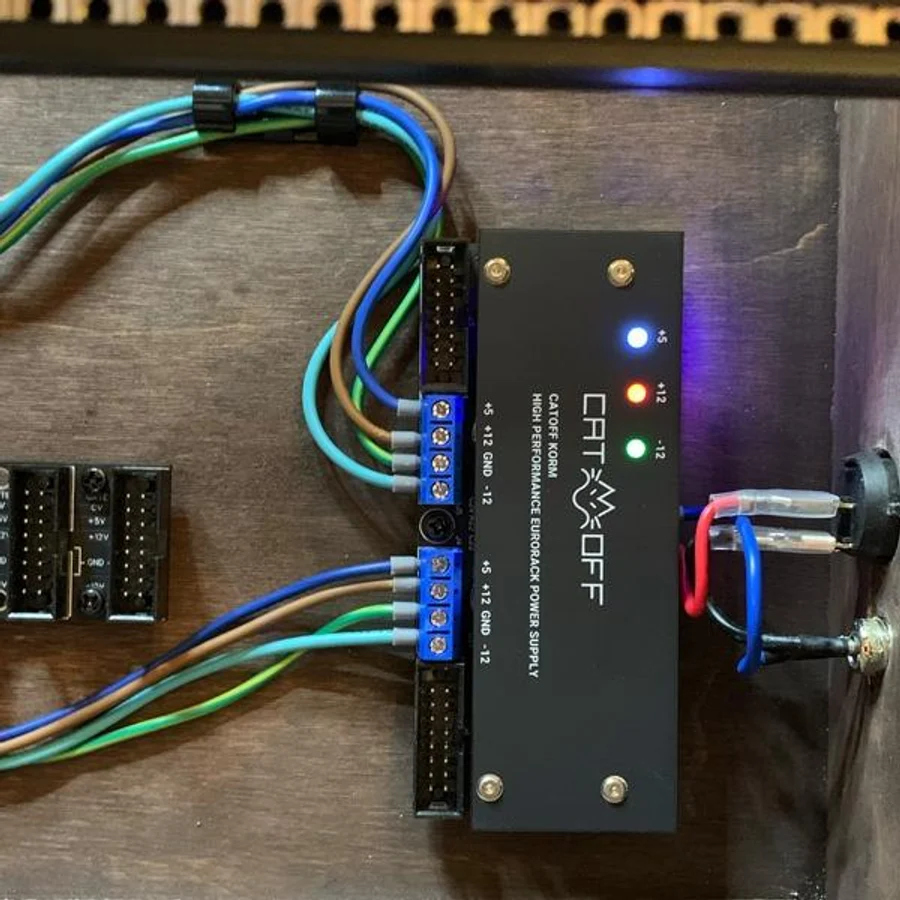

Eurorack power converter for internal installing

*

Easy to install and connection but for professional installation only

*

Flexible for power distribution

*

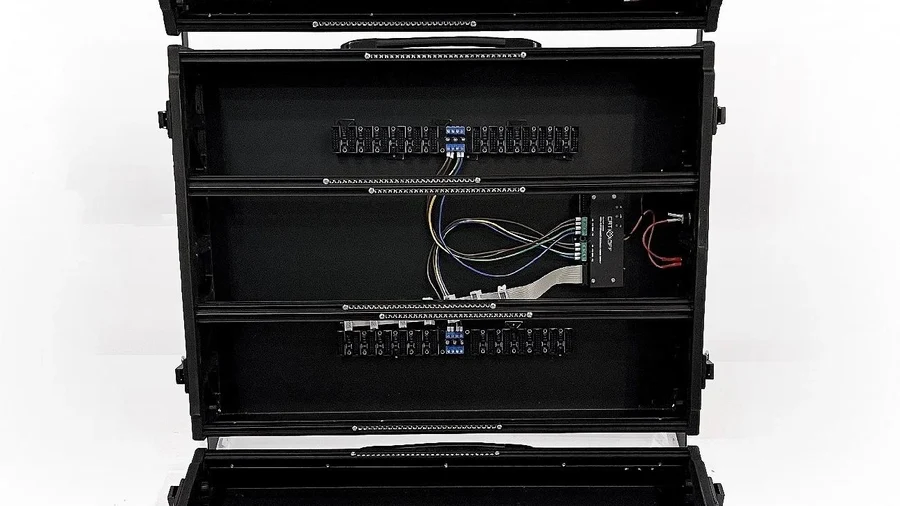

Ready for flying bus or/and power busboard

*

Support all three voltages +12/-12/+5v with adequate power for a medium-sized system

*

TECHNICAL SPECIFICATIONS

Input voltage range: 18-36v DC Maximum operating current of the channel +12v: 3A Maximum operating current of the channel -12v: 2A Maximum operating current of the channel +5v: 1,5A Ripple at a current of 1A per channel: no more than 10 mV Conversion frequency: 400kHz Built-in protection against: overload, short circuit, incorrect polarity Recommended power supply: 19V DC / at least 4A / 90W (Not included in the package) Dimensions: 107 (L) x 47 (w) x 16 (h) mm Options / sold separately: Power adapter DC Power distribution board CATOFF CBUS-14 Power distribution mini-board CATOFF XBUS-10 FlyingBus distribution cable CATOFF FBUS-7

Stock
YES

Eurorack power converter for internal installing

*

Flexible for power distribution

*

Support all three voltages +12/-12/+5v with adequate power for a medium-sized system

*

Easy to install and connection but for professional installation only

*

Ready for flying bus or/and power busboard

*
