FAT

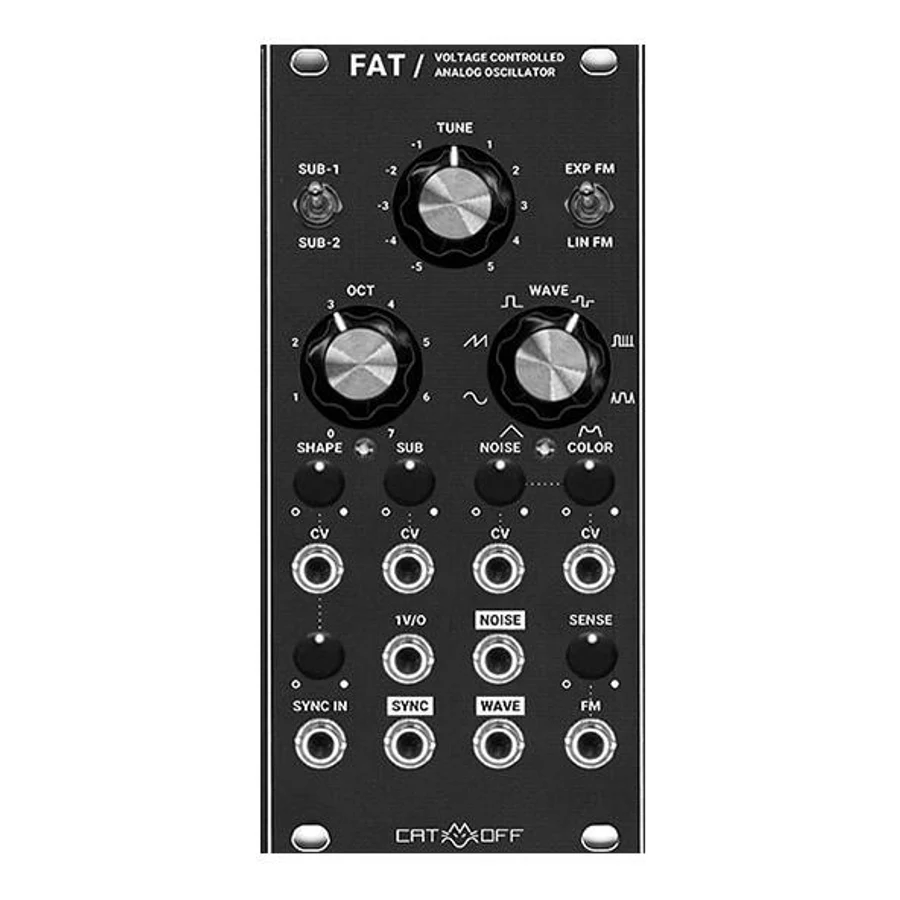

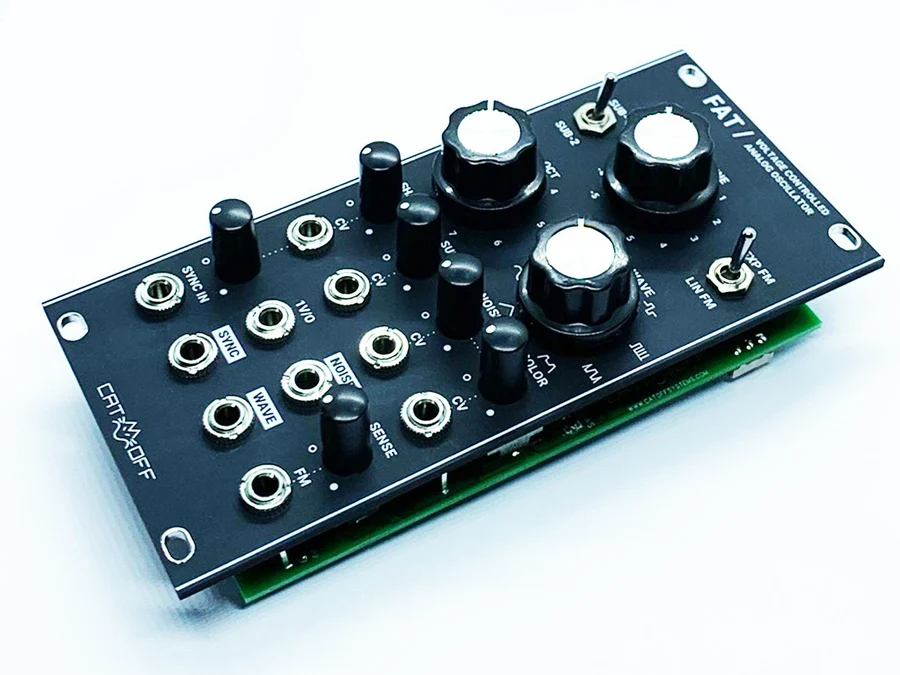

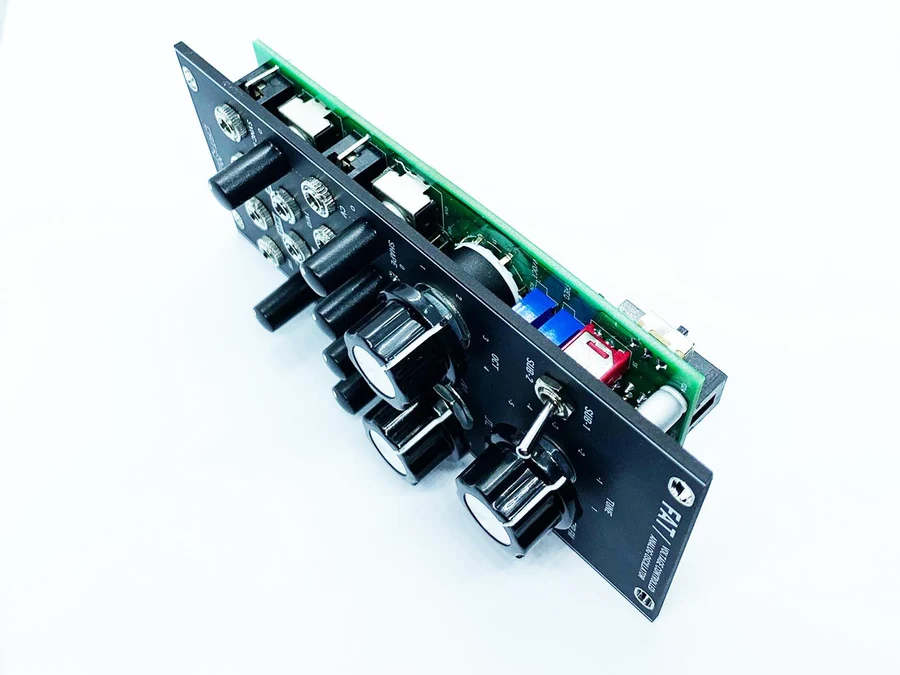

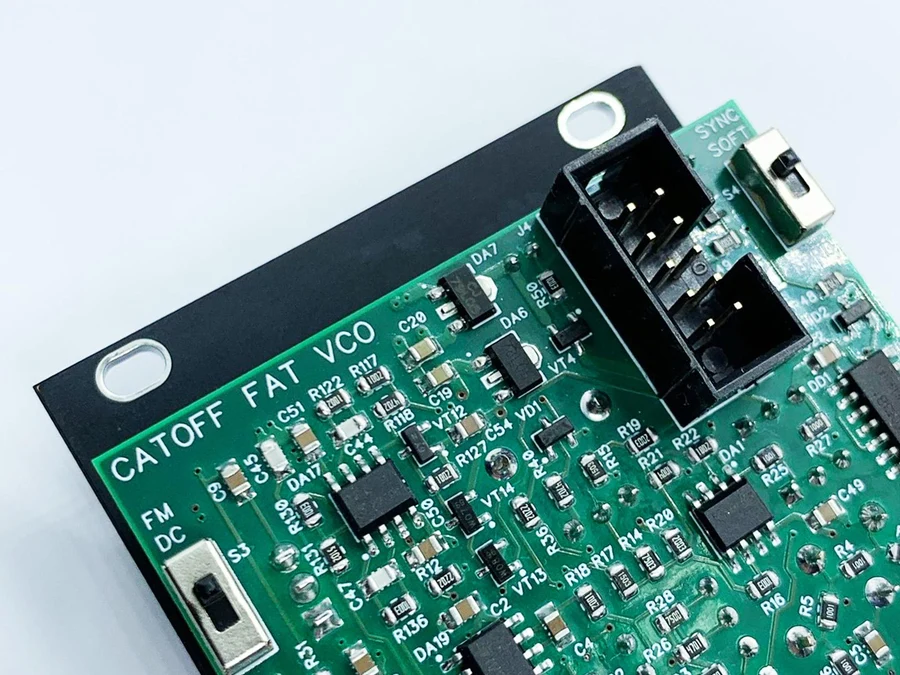

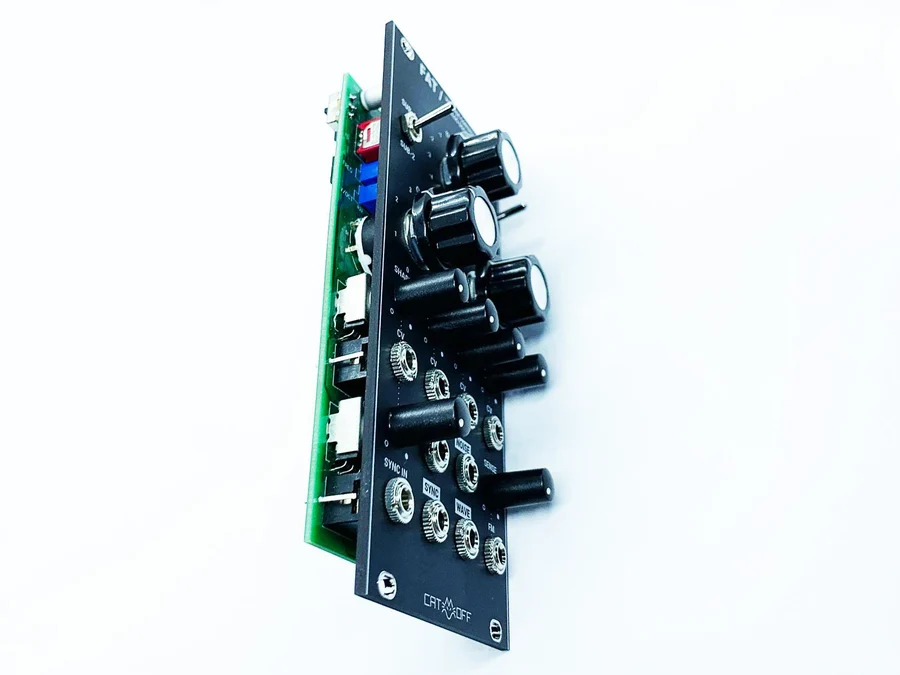

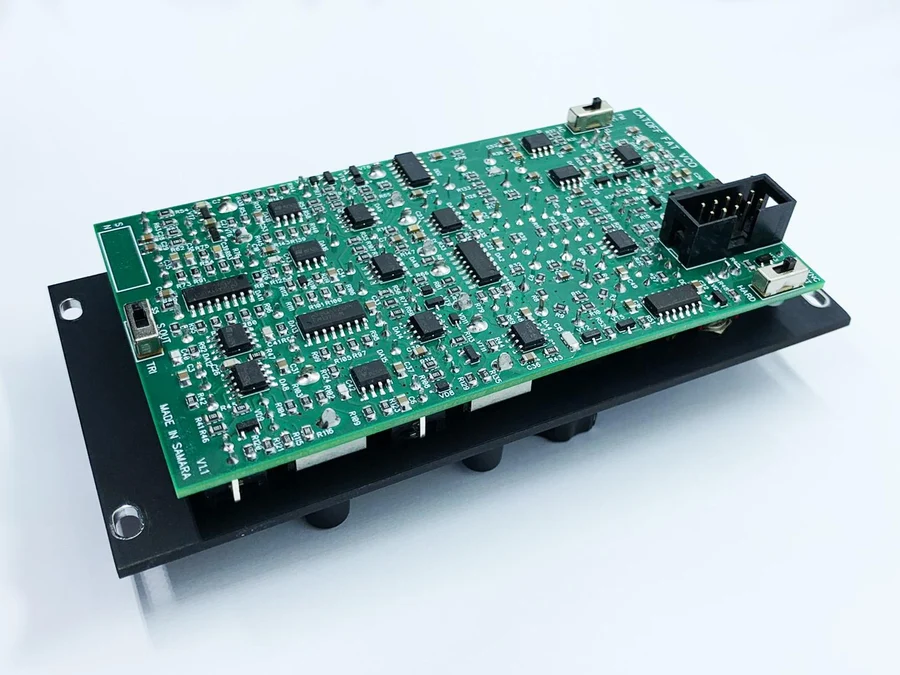

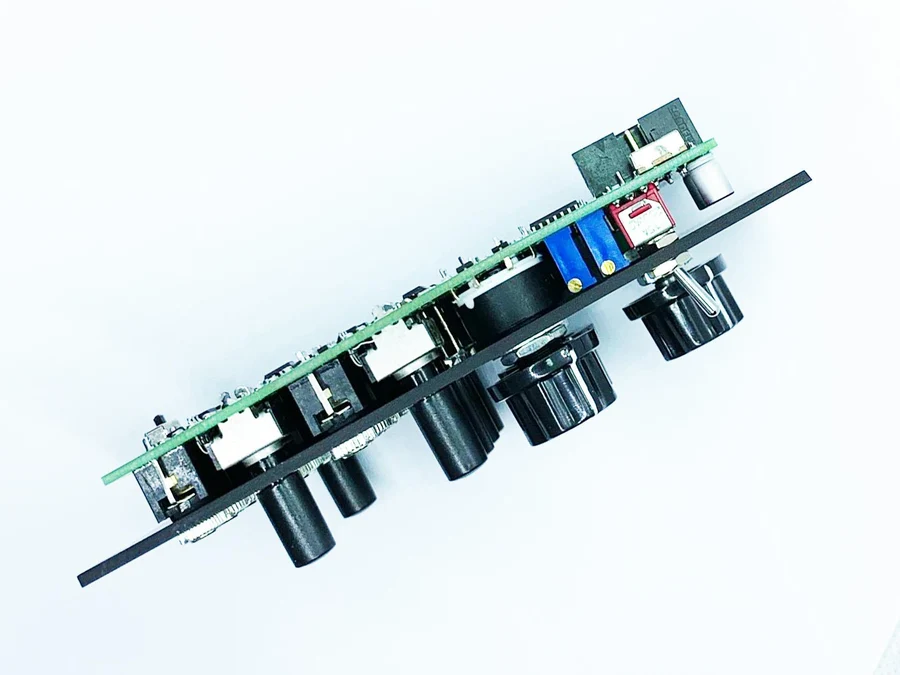

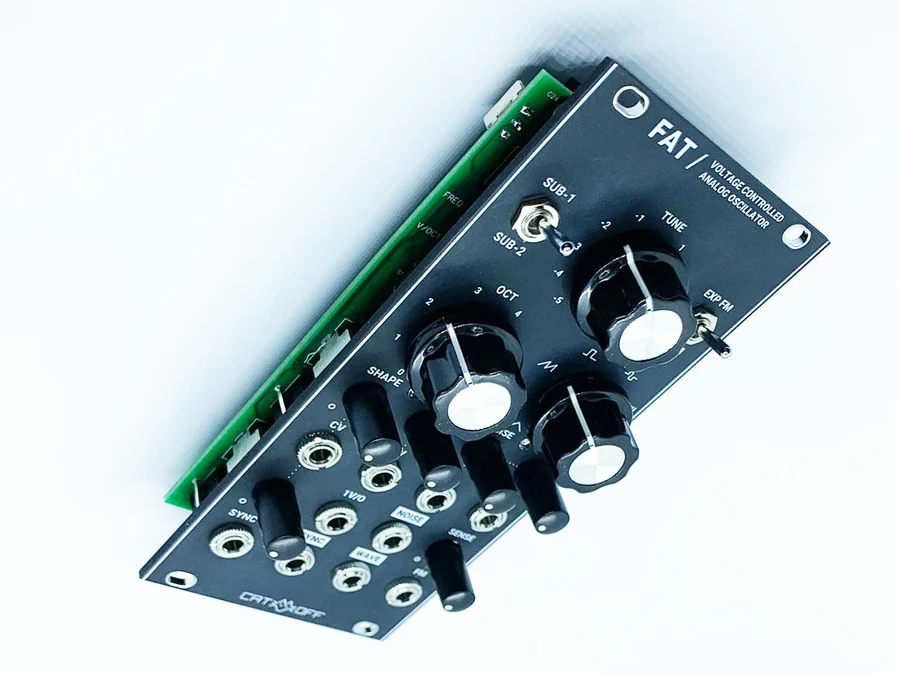

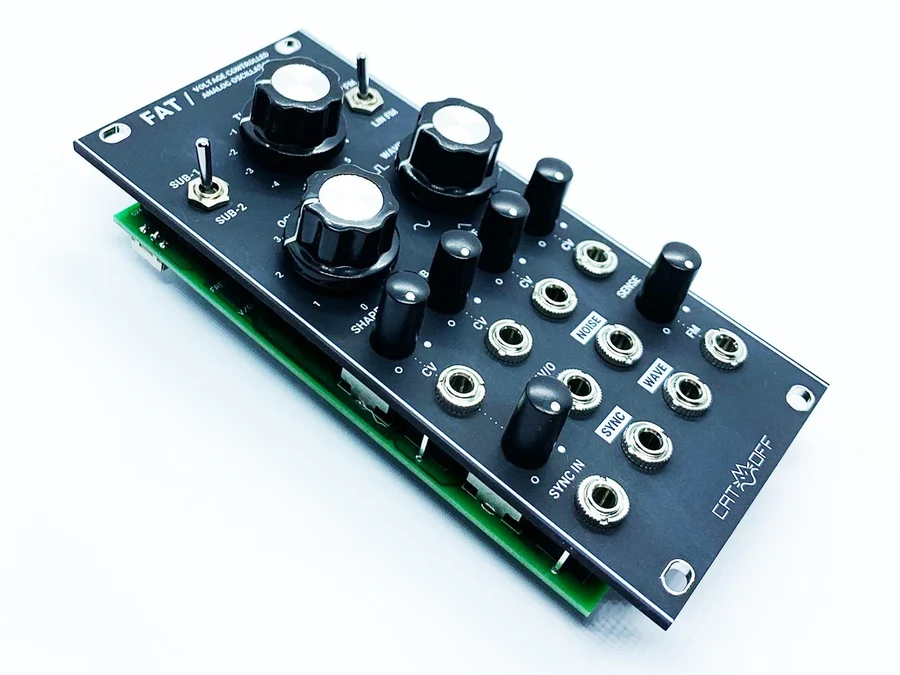

Core Type: Triangle-core Frequency Range: 14Hz — 32kHz Tracking Range: 9 octave WAVE & SYNC Output Level: 5v (+/- 10%) NOISE Output Level: up to 5v (+/- 10%) Outputs Impedance: 1 kΩ Inputs Impedance: 100 kΩ CV Inputs responds: -10v / +10v (V/Oct, FM, Noise Color), 0 / +5v (SUB, Noise), -5v / +5v (Shape) SYNC Input Voltage range: +1 / +10v Warm up time: up to 4 minutes / for full stability: about 10 minutes CONTROLS: TUNE - Fine tune control pot OCT - Discrete octave control switch WAVE - Discrete waveform control switch SHAPE - Waveshape control pot with CV-control and attenuator SUB - Subwave level control pot with CV-control, indicaton and two octave range switch NOISE - Noise level control pot with CV-control and indicaton COLOR - Noise color pot with CV-control OUTPUTS: WAVE - Main wave output NOISE - Dedicated noise output SYNC - Signal output for synchronization with other vco INPUTS: 1V/O - Pitch CV input with 1 volt per octave range SYNC IN - Input to synchronize FAT from other vco FM - Frequency modulation input with attenuator and exponential/line swtch BOTTOM SIDE MICROSWITCHES: FM (DC/AC) - LIN FM (only) input mode switch. DC is recommended for modulations from different LFO and sequencers. AC is for modulations from audible signal sources SYNC (SOFT/HARD) - Determines SYNC IN mode S.OUT (ME/TRI) - Determines SYNC OUT waveform. ME (meander) is better for synchronizing most modules. TRI (triangular) should be used to another FAT synchronize. Warm up - 4 minutes min / 10 minutes for full stability Power Usage: 80mA# +12v / 80mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel
