10 000 ₽

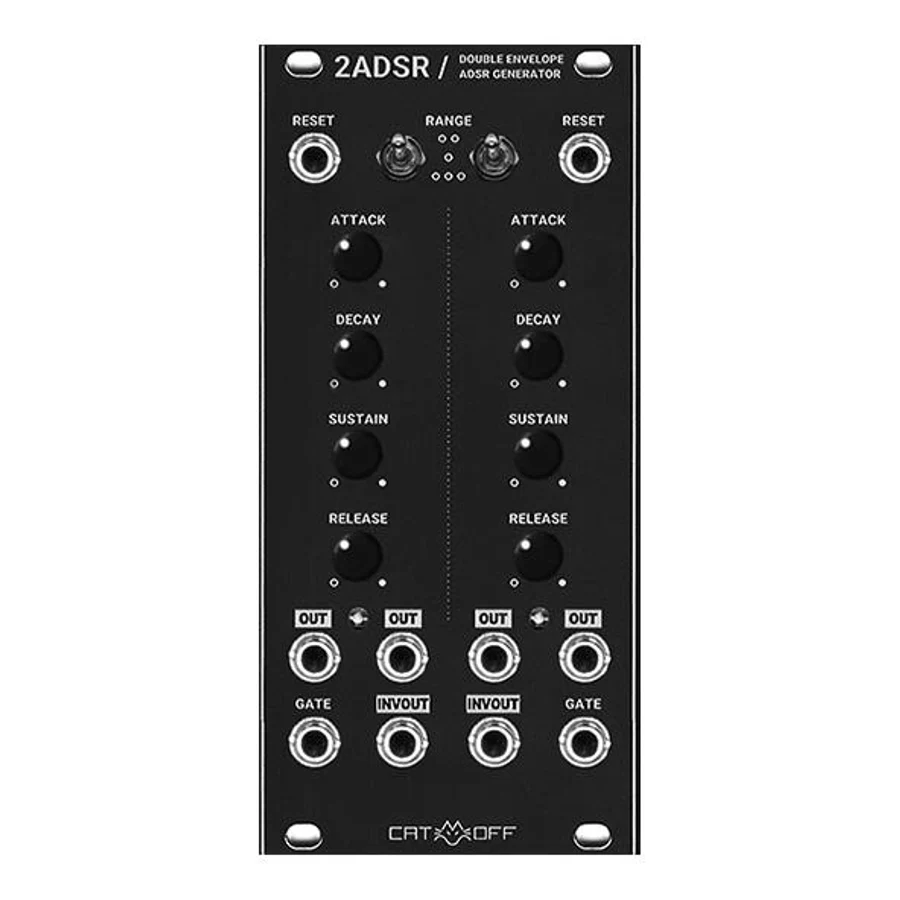

2ADSR

Name: 2ADSR
Brand: CATOFF
SKU: 68680b7
Price: 10000 RUB
Availability: InStock

double a.d.s.r. generator

CATOFF

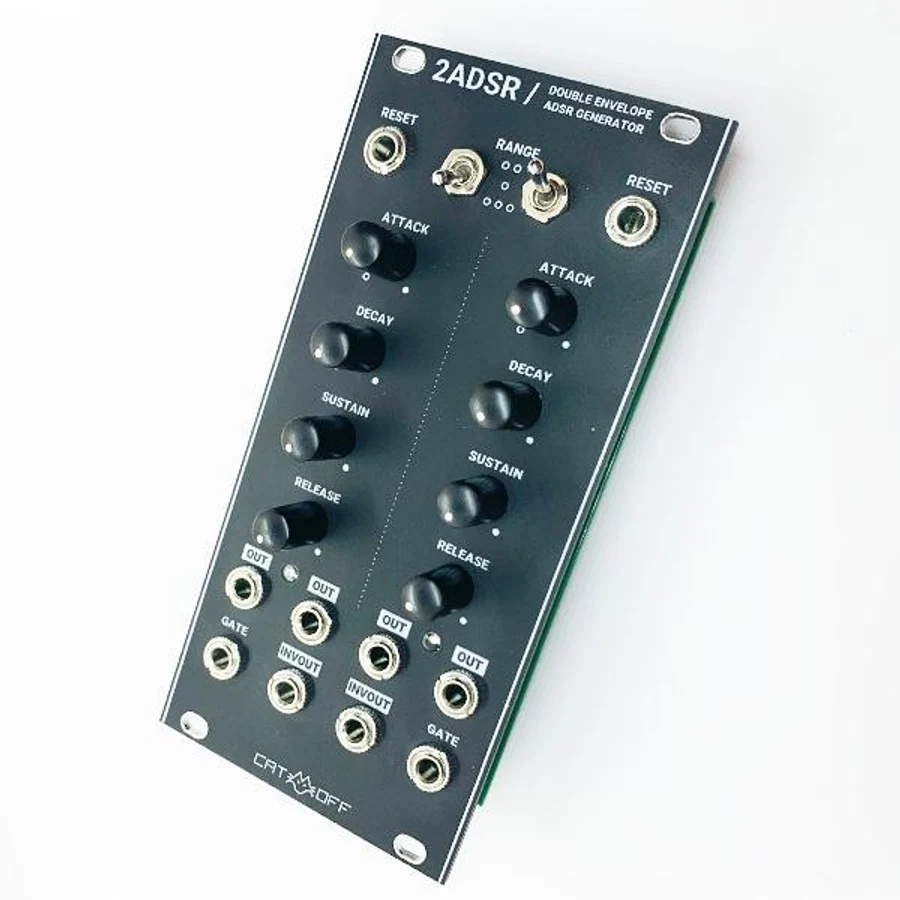

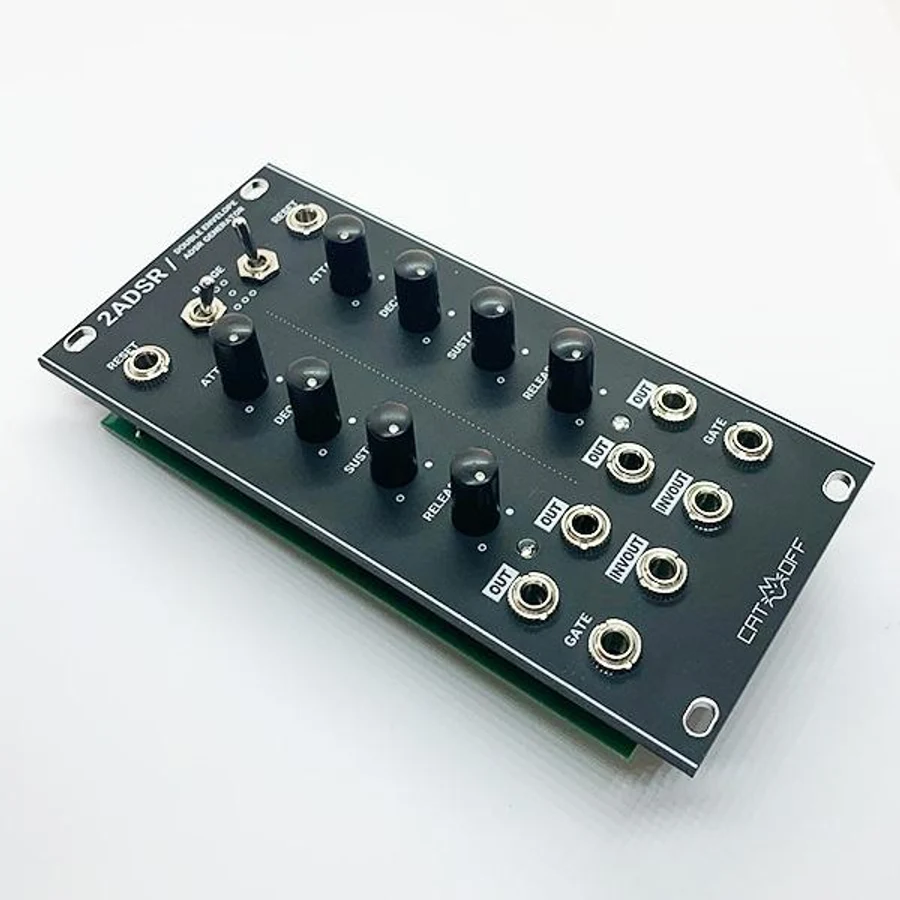

Two A.D.S.R. in one module

Both the envelopes starts at the same time if patchcord connected to one of the two GATE sockets

Or work independently if patchcords are connected to both GATE sockets

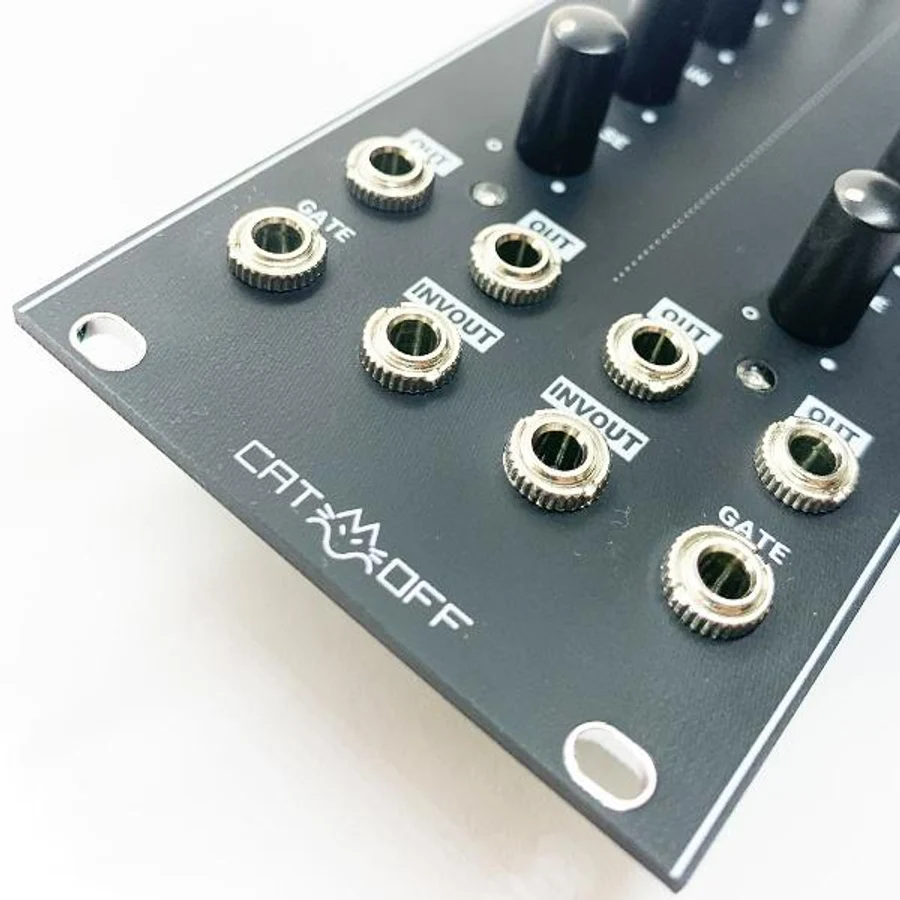

Double envelope and inversion outs for each of the two ADSR

Reset input for retrig envelopes

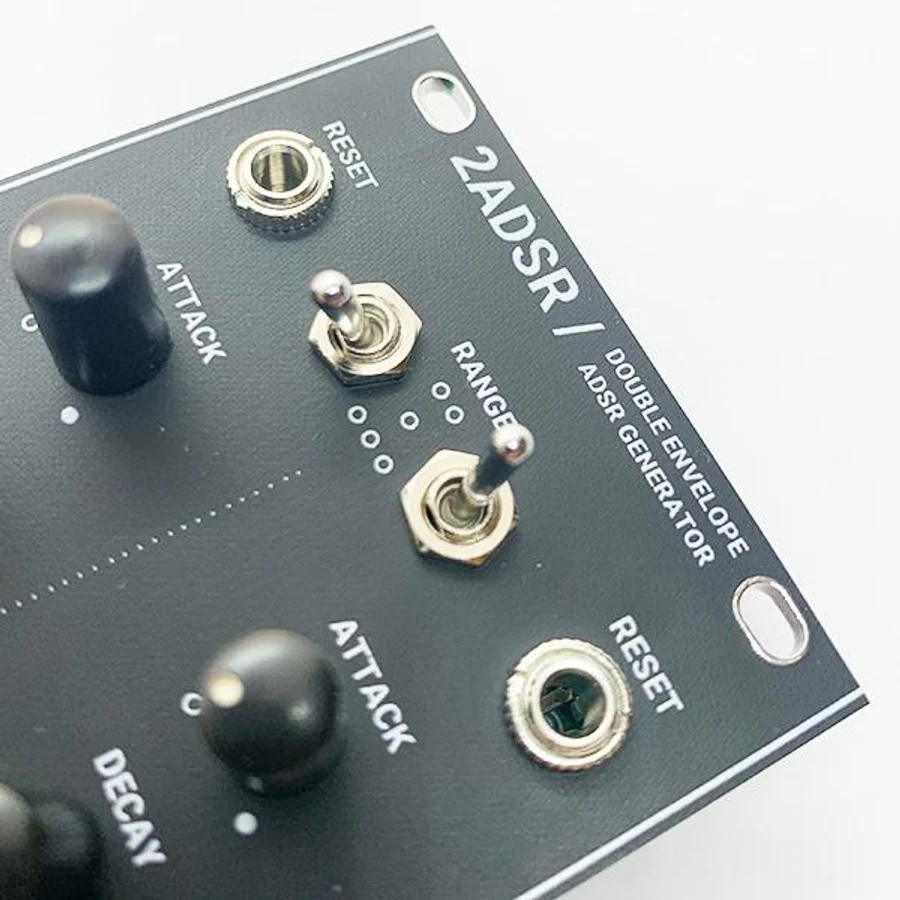

3-position toggle switch to select one of three time ranges allows to get envelopes up to one minute long

TECHNICAL SPECIFICATIONS

Attack, Decay, Release time depending upon the position of the toggle switch: 1 DOT: Attack = 0,5ms - 650ms / Decay = 0,2ms - 650ms / Release = 0,2ms - 1s 2 DOTS: Attack = 3ms - 10s / Decay = 3ms - 10s / Release = 3ms - 15s 3 DOTS: Attack = 10ms - 40s / Decay = 10ms - 40s / Release = 10ms - 60s Sustain level = 0 - 10v OUT level = 0/+10V INVOUT level = 0/-10V GATE input threshold: 1v RESET input threshold: 0,7v Power Usage: 30mA# +12v / 14mA# -12v Width: 12HP Depth: 21mm max from the back side of the front panel

Stock
YES
