digtal effects module
CATOFF
*
*
*
*
*
*

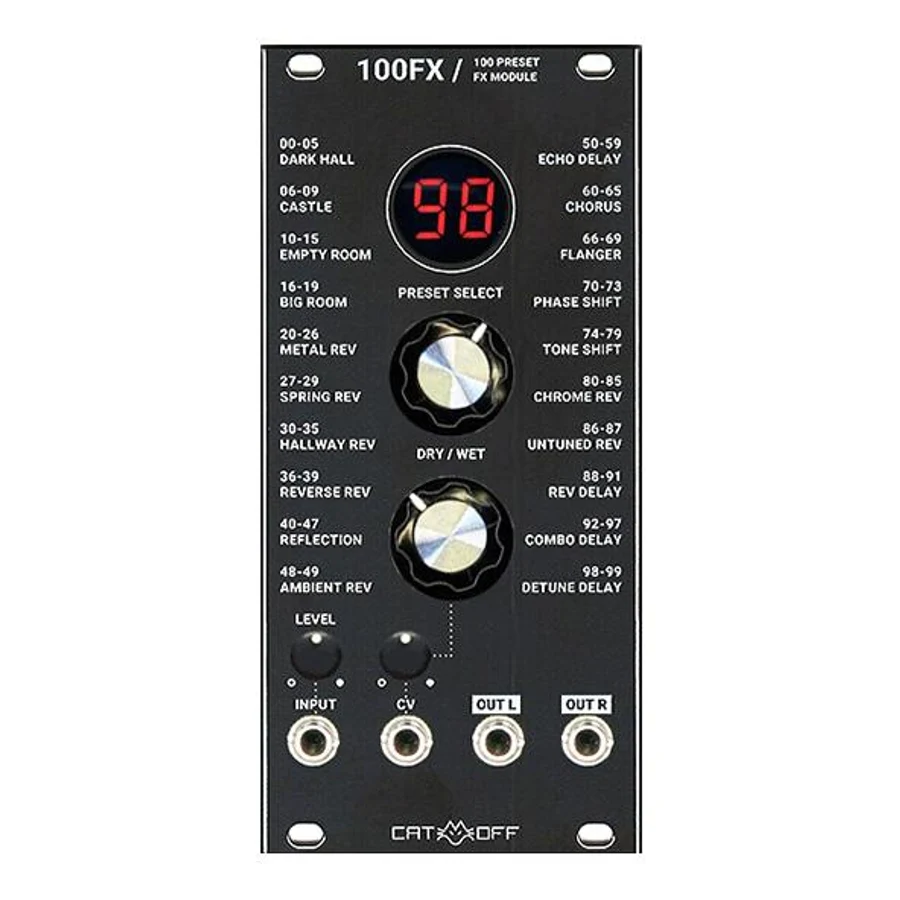

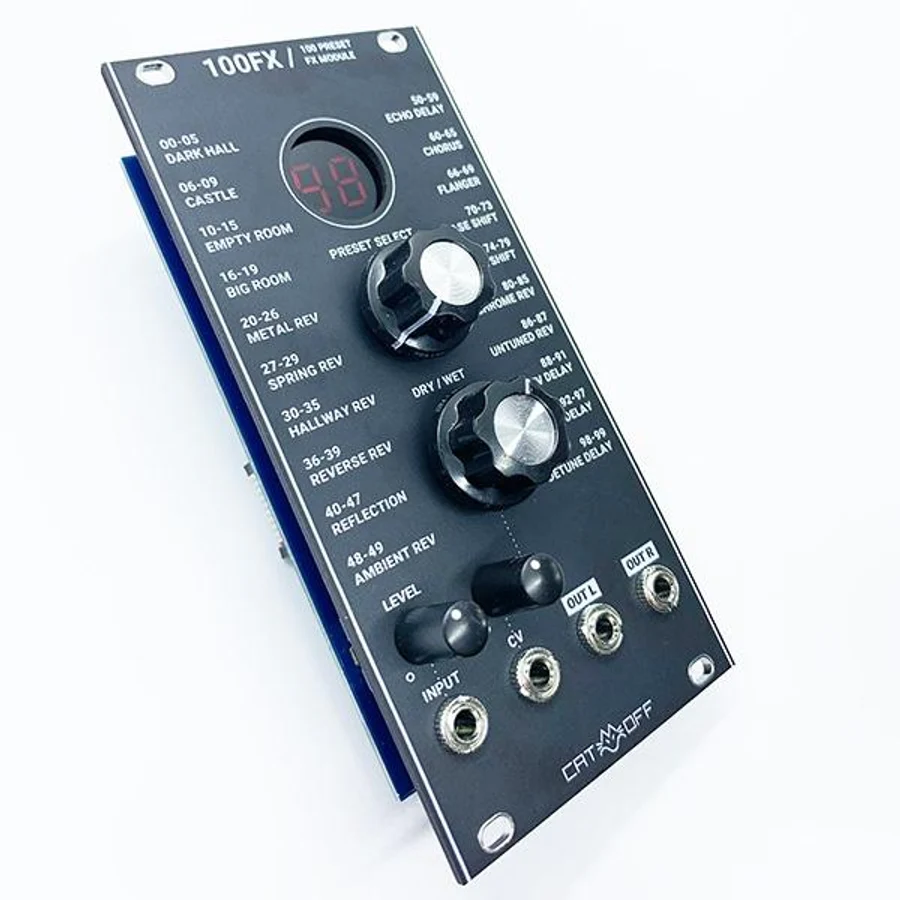

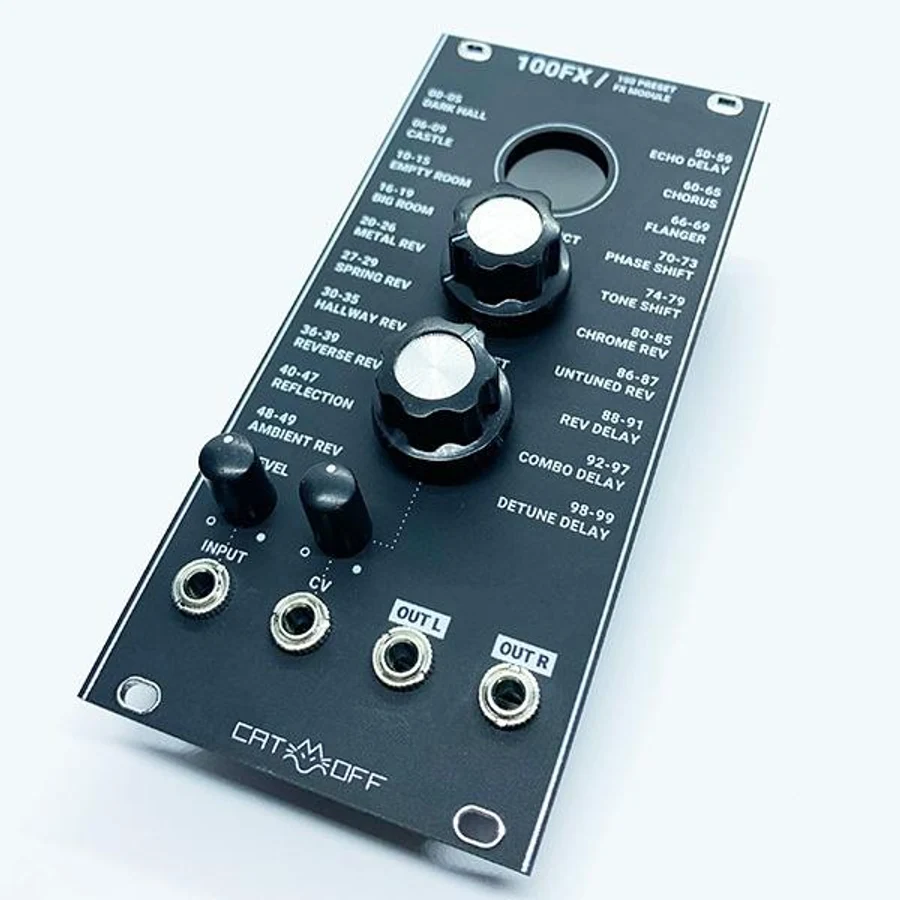

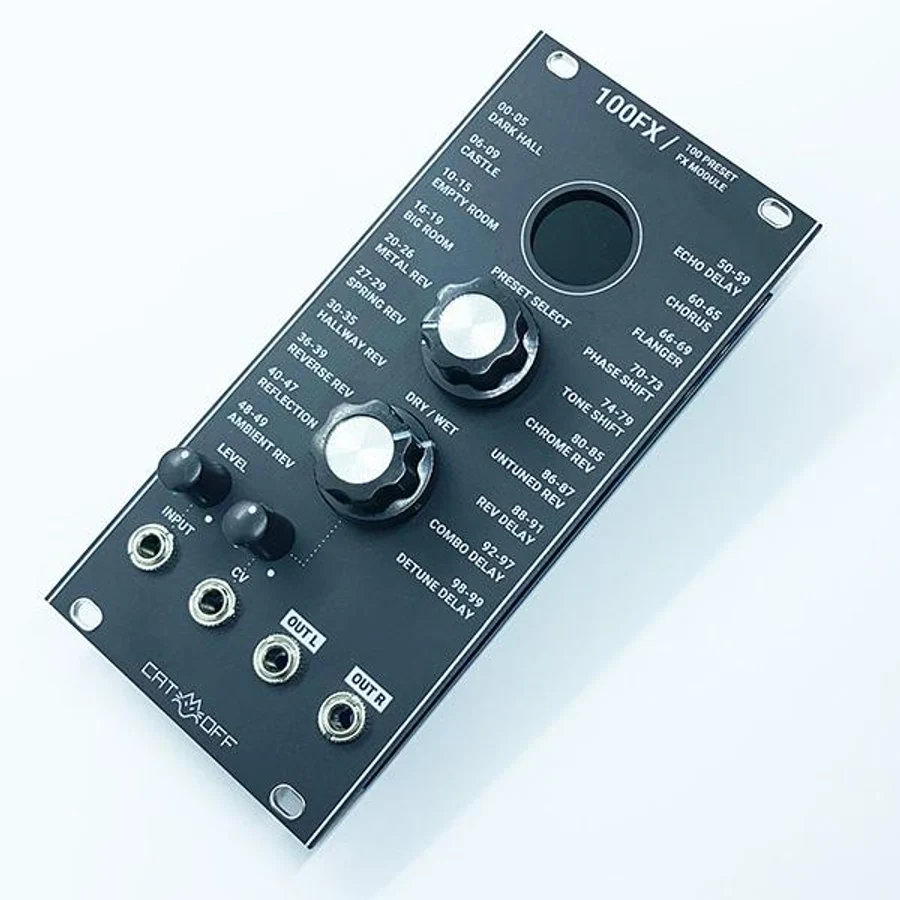

24 bit ADC / Sampling rate 96kHz Controls and indicators: 20mm bakelite knobs for PRESET SELECT and DRY/WET Mini-knobs for Input Level and CV-attenuator for DRY/WET 0.36" 2-segment LED preset number indication Input: 1 x 3.5mm TS mono jackInput Impedance: 100 kΩ unbalanced Optimal Input Amplitude: 5V (10dBu) CV DRY/WET input impedance: 100 kΩ Outputs: 2 x 3.5mm TS mono jack for left and right (stereo-output) Output Impedance: 1.1 kΩ unbalanced Maximum Output Gain: 1 (0dB) DRY/WET CV input range: -5v / +5v Power Usage: 90mA# +12v / 19mA# -12v Width: 12HP Depth: 25mm max from the back side of the front panel ALGORITHMS LIST: 00-05 DARK HALL 06-09 CASTLE 10-15 EMPTY ROOM 16-19 BIG ROOM 20-26 METAL REV 27-29 SPRING REV 30-35 HALLWAY REV 36-39 REVERSE REV 40-47 REFLECTION 48-49 AMBIENT REV 50-59 ECHO DELAY 60-65 CHORUS 66-69 FLANGER 70-73 PHASE SHIFT 74-79 TONE SHIFT 80-85 CHROME REV 86-87 UNTUNE REV 88-91 REV DELAY 92-97 COMBO DELAY 98-99 UNTUNE DELAY
